Neles Jamesbury DN250/10 V-Ball Valve 316SS QPX4C/M New Surplus
Neles Jamesbury DN250/10 V-Ball Valve 316SS QPX4C/M New SurplusIn stock · 1 · PK-397211501566
Ships from Minnesota · LTL or customer pickup · freight quoted to your dock
- Ships from Minnesota, LTL or pickup
- PO and tax-exempt orders accepted
- 30-day returns
- Same-day processing
- Questions on fit or specs: (612) 449-0646
Specification

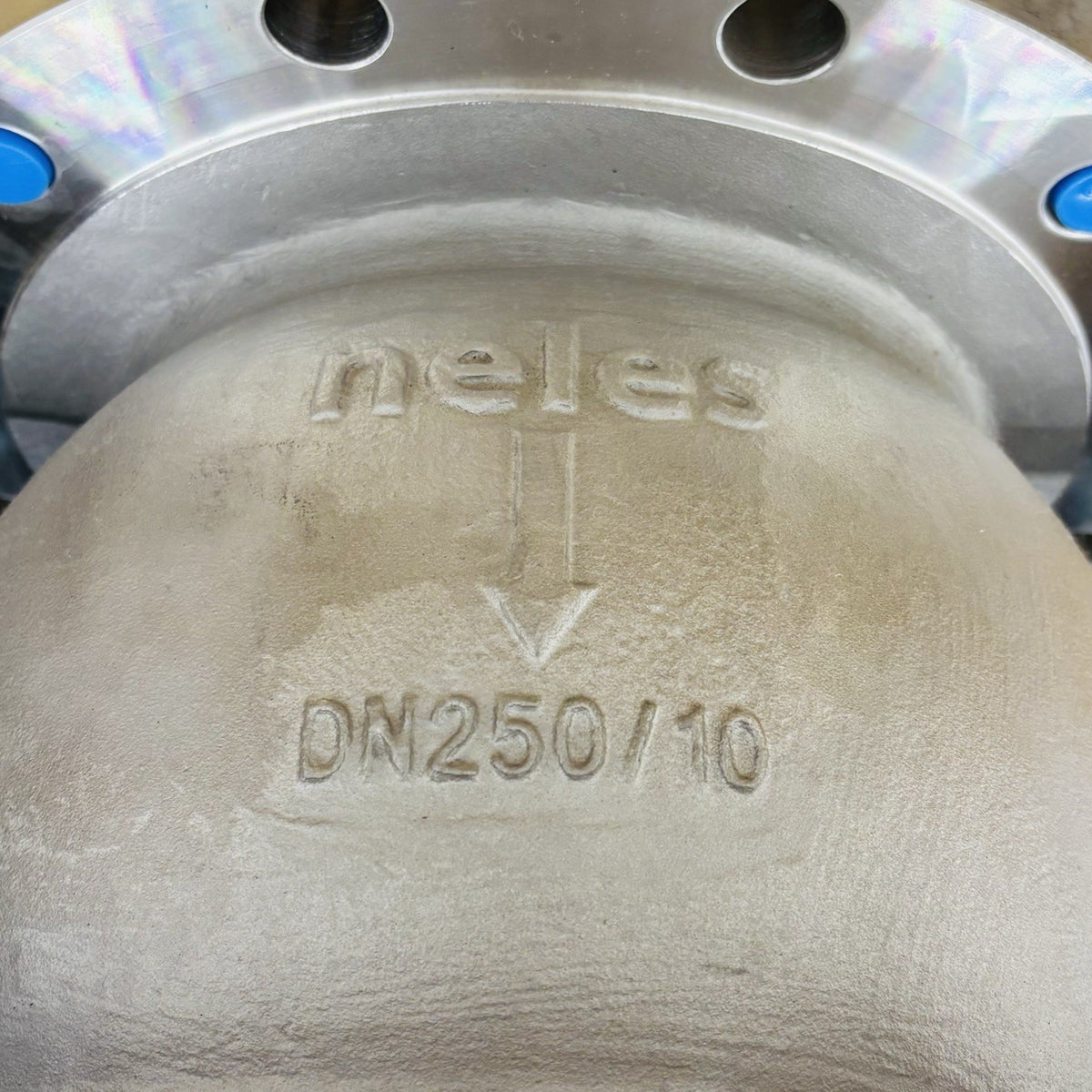

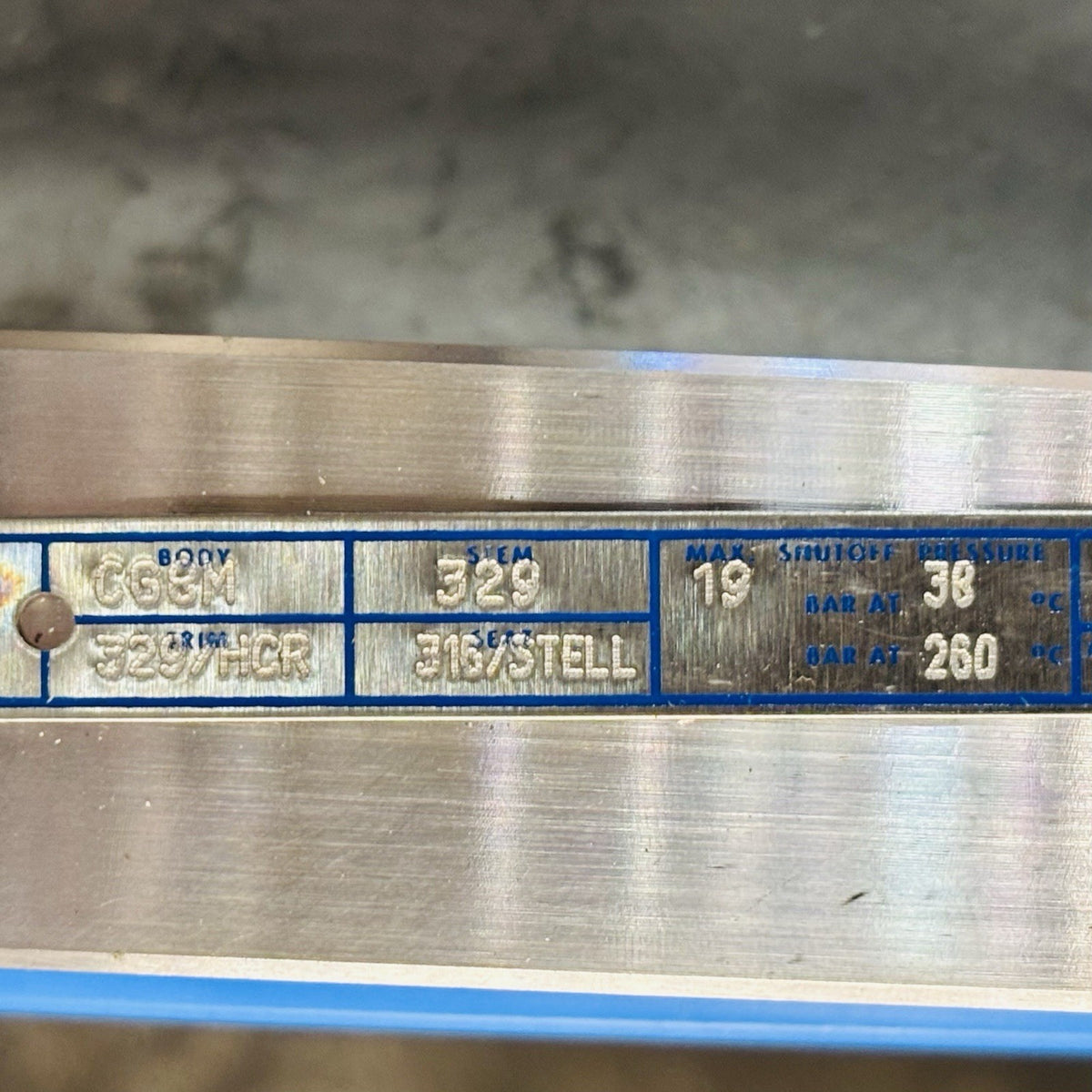

as recorded from the nameplate
- Condition
- New What our grades mean
- Brand
- Neles Jamesbury
- MPN / model
- DN250/10
- Type
- Pneumatic Actuated V-Ball Control Valve Assembly
- Size
- DN250 / 10 in Flanged
- Valve size
- DN250 / 10 in
- Body material
- CG8M (316SS)
- Trim
- 329/HCR
- Pressure class
- 19 bar shutoff at 38 C / rated to 260 C max temp
- End connection
- Flanged
- Actuation
- Pneumatic spring-diaphragm, Metso Quadra-Powr X QPX4C/M, 60-100 PSI (4.1-6.8 bar) supply, 229 ft-lbs (311 Nm) torque at end of spring stroke
- Seat material
- 316/STELL
- Max working pressure
- 19 bar at 38 C
- Reference no.
- 070-0924-98
- Country of origin
- Assembled in China / Metso USA
- SKU
- PK-397211501566
- Listed
Request a quote
Request a quote for this unit
Tell us the quantity and when you need it. You get a written quote with price, availability and freight to your dock, ready for your PO, within 24–48 hours.
SKU PK-397211501566
Prefer to talk? Call (612) 449-0646
Details
Product Description
Product Description

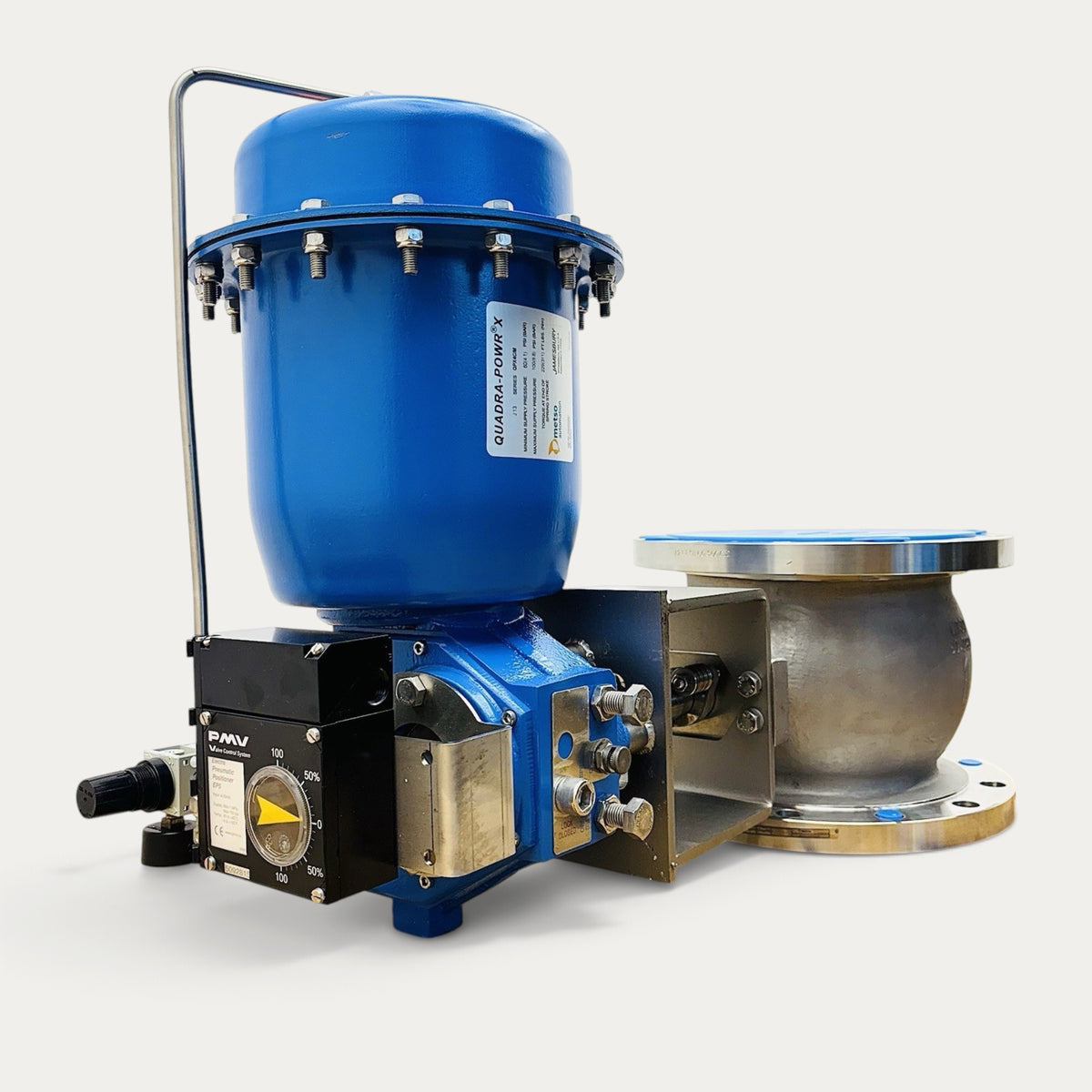

This Neles Jamesbury DN250/10 (10 in flanged) V-ball control valve is built with a CG8M (316SS) body, 329 stem, and a Metso Quadra-Powr X QPX4C/M pneumatic actuator rated 60-100 PSI supply and 229 ft-lbs end-of-stroke torque. Shutoff is rated 19 bar at 38 C, with a PMV EP5 electro-pneumatic positioner (4-20mA input, 150 PSI max) and Numatics P14B-02B air regulator installed. This assembly is in stock and ships with no OEM lead time.
Specifications
| Specification | Detail |
|---|---|
| Brand | Neles Jamesbury |
| MPN / Model | DN250/10 |
| Type | Pneumatic Actuated V-Ball Control Valve Assembly |
| Size | DN250 / 10 in Flanged |
| Valve Size | DN250 / 10 in |
| Body Material | CG8M (316SS) |
| Trim | 329/HCR |
| Pressure Class | 19 bar shutoff at 38 C / rated to 260 C max temp |
| End Connection | Flanged |
| Actuation | Pneumatic spring-diaphragm, Metso Quadra-Powr X QPX4C/M, 60-100 PSI (4.1-6.8 bar) supply, 229 ft-lbs (311 Nm) torque at end of spring stroke |
| Seat Material | 316/STELL |
| Max Working Pressure | 19 bar at 38 C |
| Reference No. | 070-0924-98 |
| Condition | New (open box) - unused surplus, factory-tested, no signs of installation |
| Country of Origin | Assembled in China / Metso USA |
Specifications published from listing and manufacturer reference data. Contact us to confirm fitment for your application.
What’s Included
Complete assembly ships as configured: DN250/10 316SS V-ball valve body, Quadra-Powr X QPX4C/M pneumatic actuator, PMV EP5 positioner, and Numatics air regulator with gauges. Freight is quoted by destination.
Freight quoted by item & destination.
sales@dwpindustrial.io • (612) 449-0646
Shipping & Handling
Shipping & Handling
$250 flat-rate LTL freight on qualifying orders in the continental US, with overnight, two-day, ground and expedited options available. Hotshot delivery and customer pickup can be arranged.
Orders get same-day processing, Monday–Friday. Transit depends on the carrier and lane.
For international orders or custom shipping needs, please contact us for a quote.
Return Information
Return Information
Return any item within 30 days of delivery.
If the unit is defective or does not match the listing, we pay the return freight and refund or replace it in full. Otherwise the item must be unused and in its original packaging, and you cover the return shipping.
Contact
Contact
Questions on fit, specs, freight or availability? Email sales@dwpindustrial.io or call (612) 449-0646. A person who knows the equipment answers.
Need a different size, voltage or configuration? We source hard-to-find and obsolete equipment through a dealer, factory and surplus network. How sourcing works
Condition and guarantee
This unit is new and unused. We bought it as surplus, not through the manufacturer's dealer channel, so the factory warranty does not apply. We check the nameplate against the listing and photograph the actual unit. If it does not match the description, send it back within 30 days for a full refund. Not sure it fits? Ask us and we will confirm before you order.
