Neles 8 in CL300 Q-REDA08AJJST Ball Valve RCEL060 Electric Actuator New Surplus
Neles 8 in CL300 Q-REDA08AJJST Ball Valve RCEL060 Electric Actuator New SurplusIn stock · 1 · PK-397507889928
Ships from Minnesota · LTL or customer pickup · freight quoted to your dock
- Ships from Minnesota, LTL or pickup
- PO and tax-exempt orders accepted
- 30-day returns
- Same-day processing
- Questions on fit or specs: (612) 449-0646
Specification

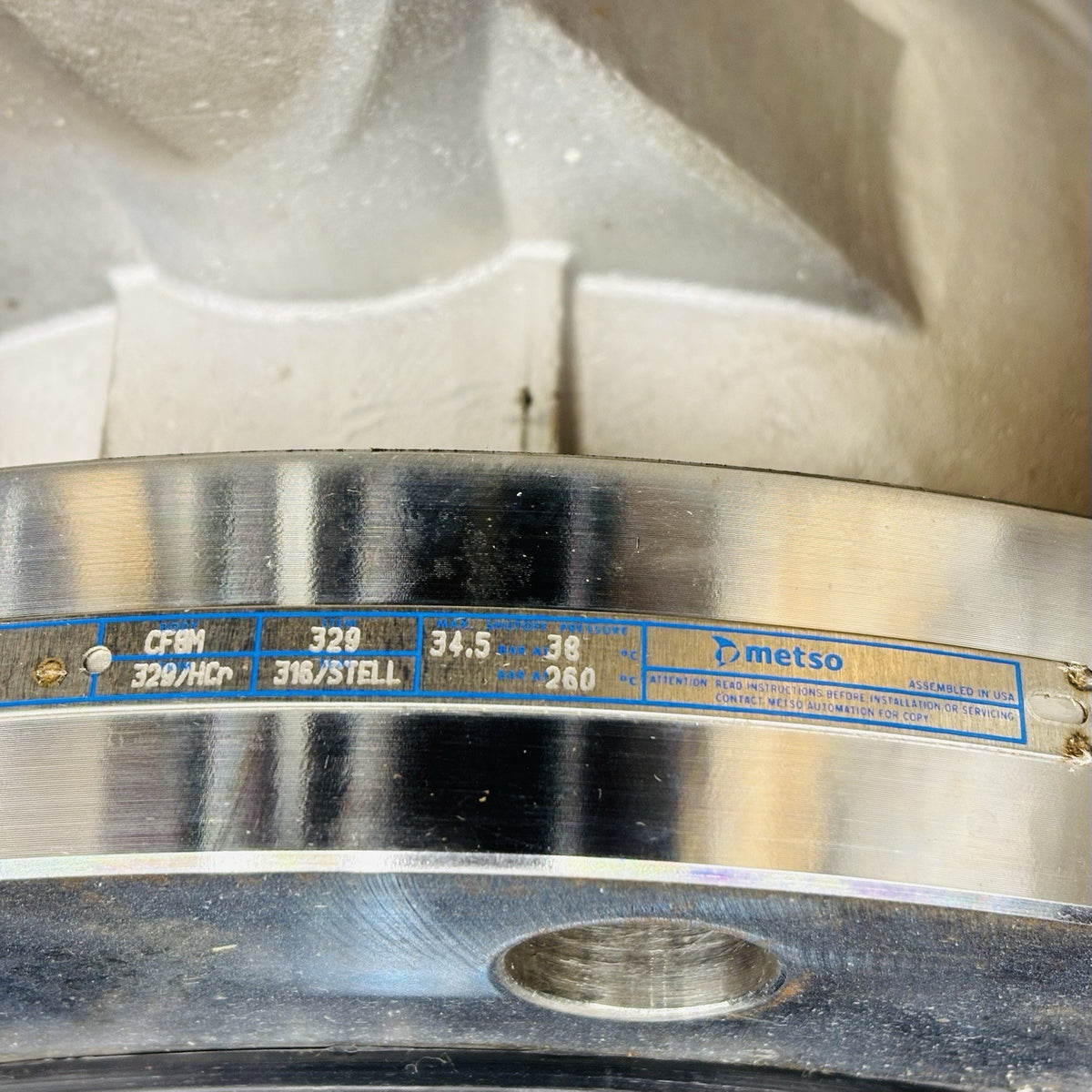

as recorded from the nameplate
- Condition
- New What our grades mean
- Brand
- Neles
- MPN / model
- Q-REDA08AJJST
- Type
- Trunnion Mounted Control Ball Valve, Electric Actuated
- Serial no.
- AF155521
- Valve size
- 8 in
- Body material
- CF8M / 316 Stainless Steel
- Trim
- 329 stem, 316/Stellite seals
- Pressure class
- CL300
- End connection
- Flanged ANSI B16.34
- Actuation
- Electric, RCEL060 (1 Ph 120V, 3.1A, 25% duty, 5200 lbf-in torque)
- Seat material
- 329/HCr
- Max working pressure
- 34.5 Bar at 38 C
- Country of origin
- Assembled in USA
- SKU
- PK-397507889928
- Listed
Request a quote
Request a quote for this unit
Tell us the quantity and when you need it. You get a written quote with price, availability and freight to your dock, ready for your PO, within 24–48 hours.
SKU PK-397507889928
Prefer to talk? Call (612) 449-0646
Details
Product Description
Product Description

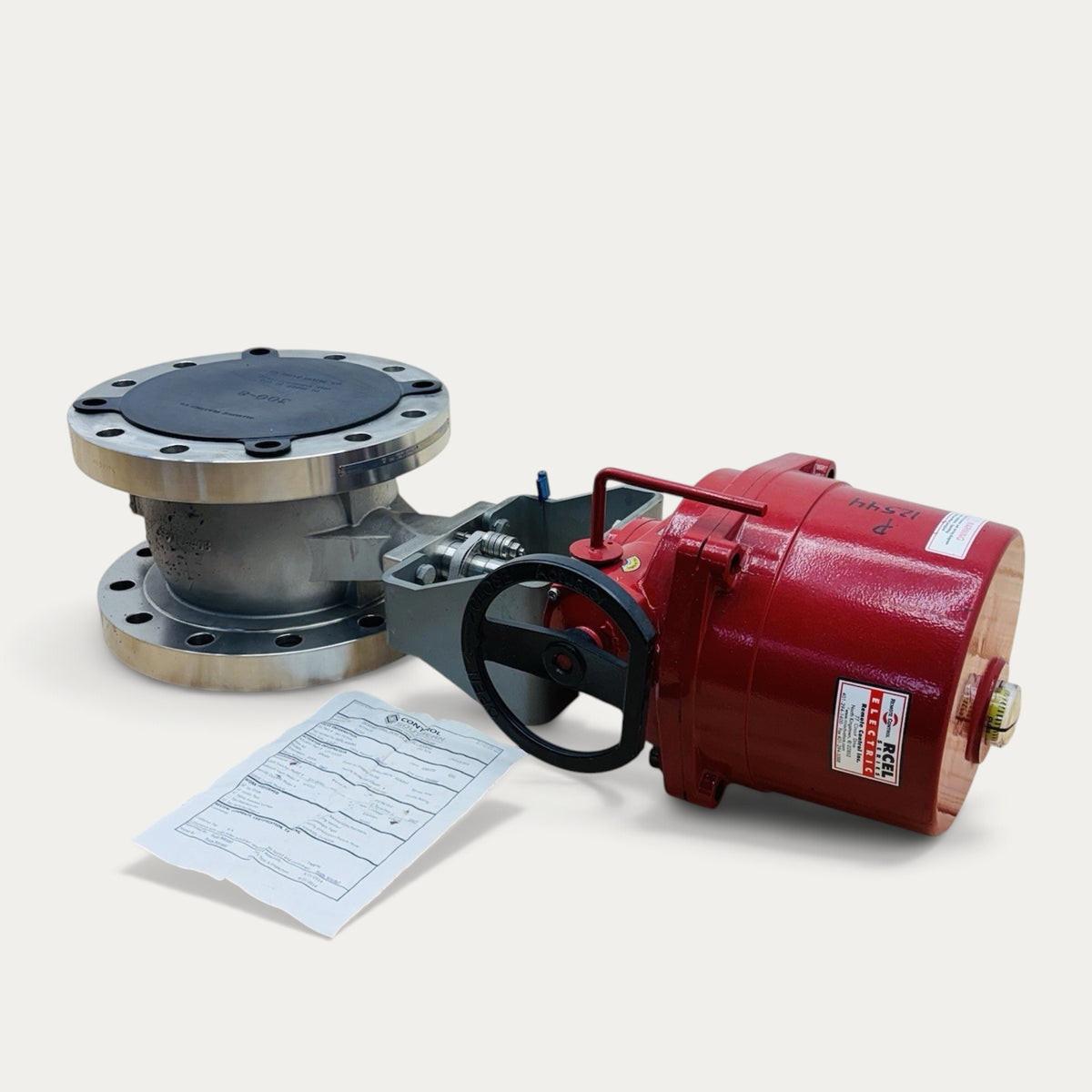

This Neles 8" CL300 Q-REDA08AJJST is a trunnion-mounted CF8M/316 stainless ball valve rated 34.5 Bar at 38 C, fitted with an RCEL060 electric actuator (1 Ph 120V, 3.1A, 5200 lbf-in torque, NEMA 4/4X). Flanged per ANSI B16.34 for corrosive industrial flow control service. In stock and ready to ship with no OEM lead time.
Specifications
| Specification | Detail |
|---|---|
| Brand | Neles |
| MPN / Model | Q-REDA08AJJST |
| Type | Trunnion Mounted Control Ball Valve, Electric Actuated |
| Serial No. | AF155521 |
| Valve Size | 8 in |
| Body Material | CF8M / 316 Stainless Steel |
| Trim | 329 stem, 316/Stellite seals |
| Pressure Class | CL300 |
| End Connection | Flanged ANSI B16.34 |
| Actuation | Electric, RCEL060 (1 Ph 120V, 3.1A, 25% duty, 5200 lbf-in torque) |
| Seat Material | 329/HCr |
| Max Working Pressure | 34.5 Bar at 38 C |
| Condition | New (open box) - unused surplus spare, never installed or placed into service |
| Country of Origin | Assembled in USA |
Specifications published from listing and manufacturer reference data. Contact us to confirm fitment for your application.
What’s Included
Ships complete with the ball valve, RCEL060 electric actuator, mounting hardware, and factory test certificate, palletized for freight.
Freight quoted by item & destination.
sales@dwpindustrial.io • (612) 449-0646
Shipping & Handling
Shipping & Handling
$250 flat-rate LTL freight on qualifying orders in the continental US, with overnight, two-day, ground and expedited options available. Hotshot delivery and customer pickup can be arranged.
Orders get same-day processing, Monday–Friday. Transit depends on the carrier and lane.
For international orders or custom shipping needs, please contact us for a quote.
Return Information
Return Information
Return any item within 30 days of delivery.
If the unit is defective or does not match the listing, we pay the return freight and refund or replace it in full. Otherwise the item must be unused and in its original packaging, and you cover the return shipping.
Contact
Contact
Questions on fit, specs, freight or availability? Email sales@dwpindustrial.io or call (612) 449-0646. A person who knows the equipment answers.
Need a different size, voltage or configuration? We source hard-to-find and obsolete equipment through a dealer, factory and surplus network. How sourcing works
Condition and guarantee
This unit is new and unused. We bought it as surplus, not through the manufacturer's dealer channel, so the factory warranty does not apply. We check the nameplate against the listing and photograph the actual unit. If it does not match the description, send it back within 30 days for a full refund. Not sure it fits? Ask us and we will confirm before you order.
