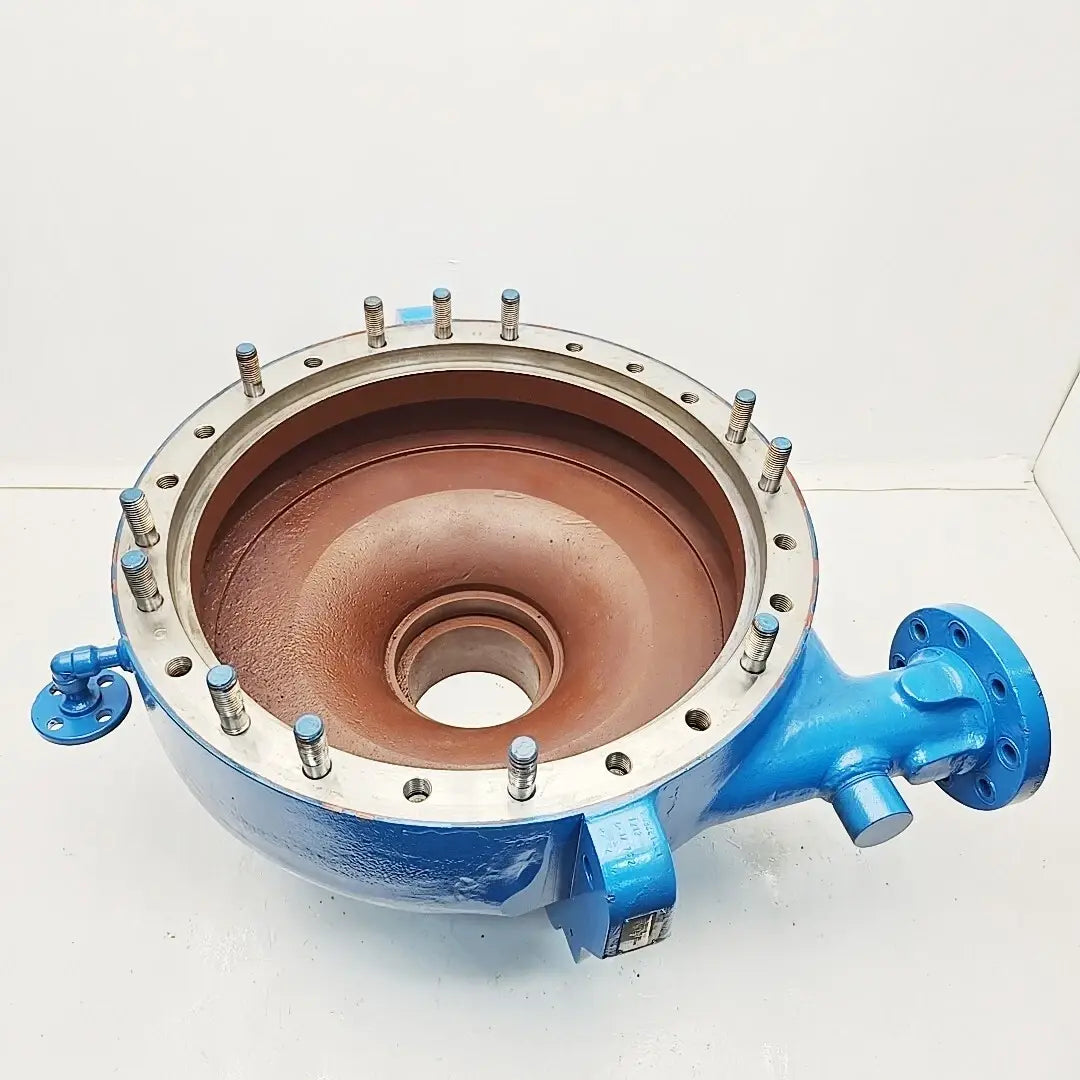

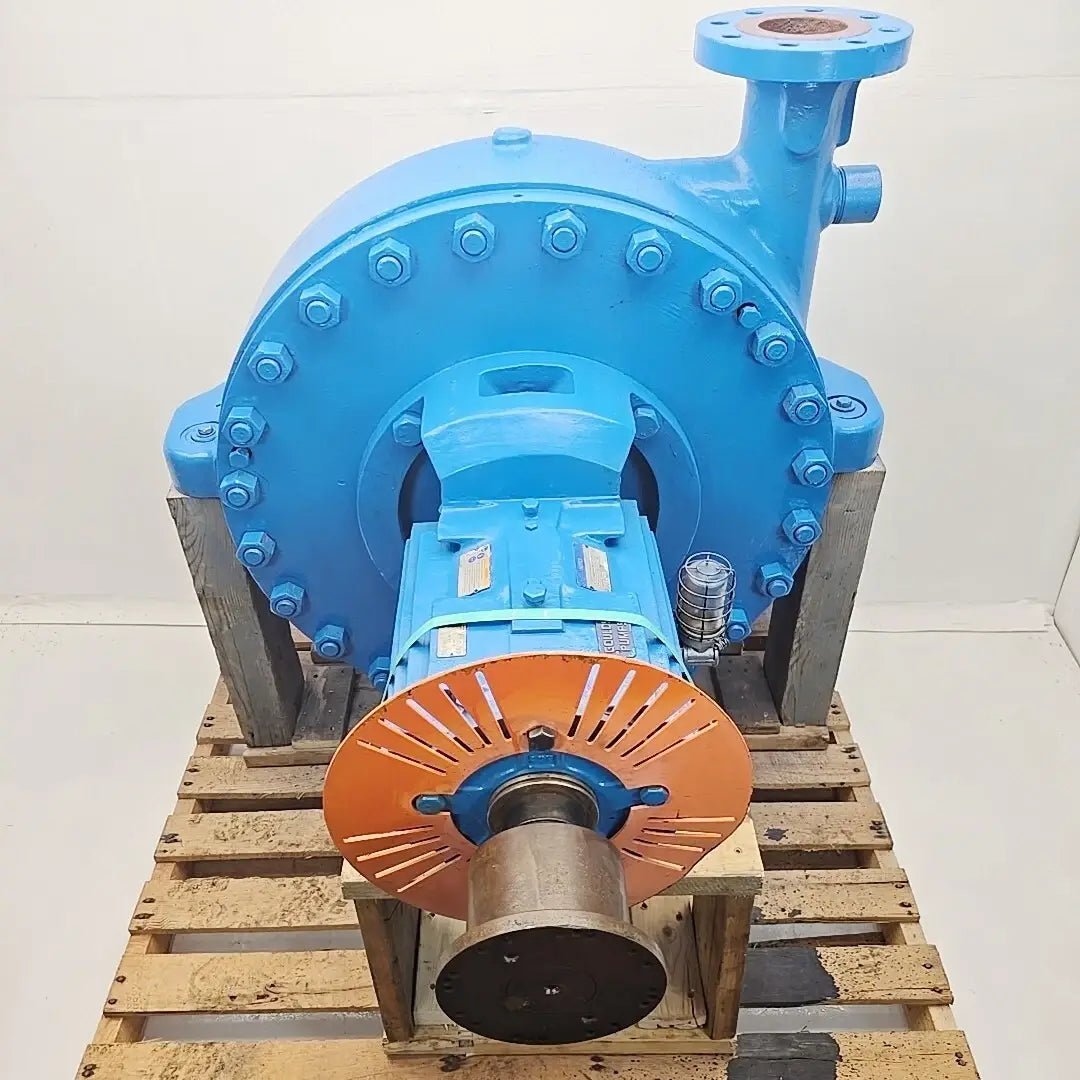

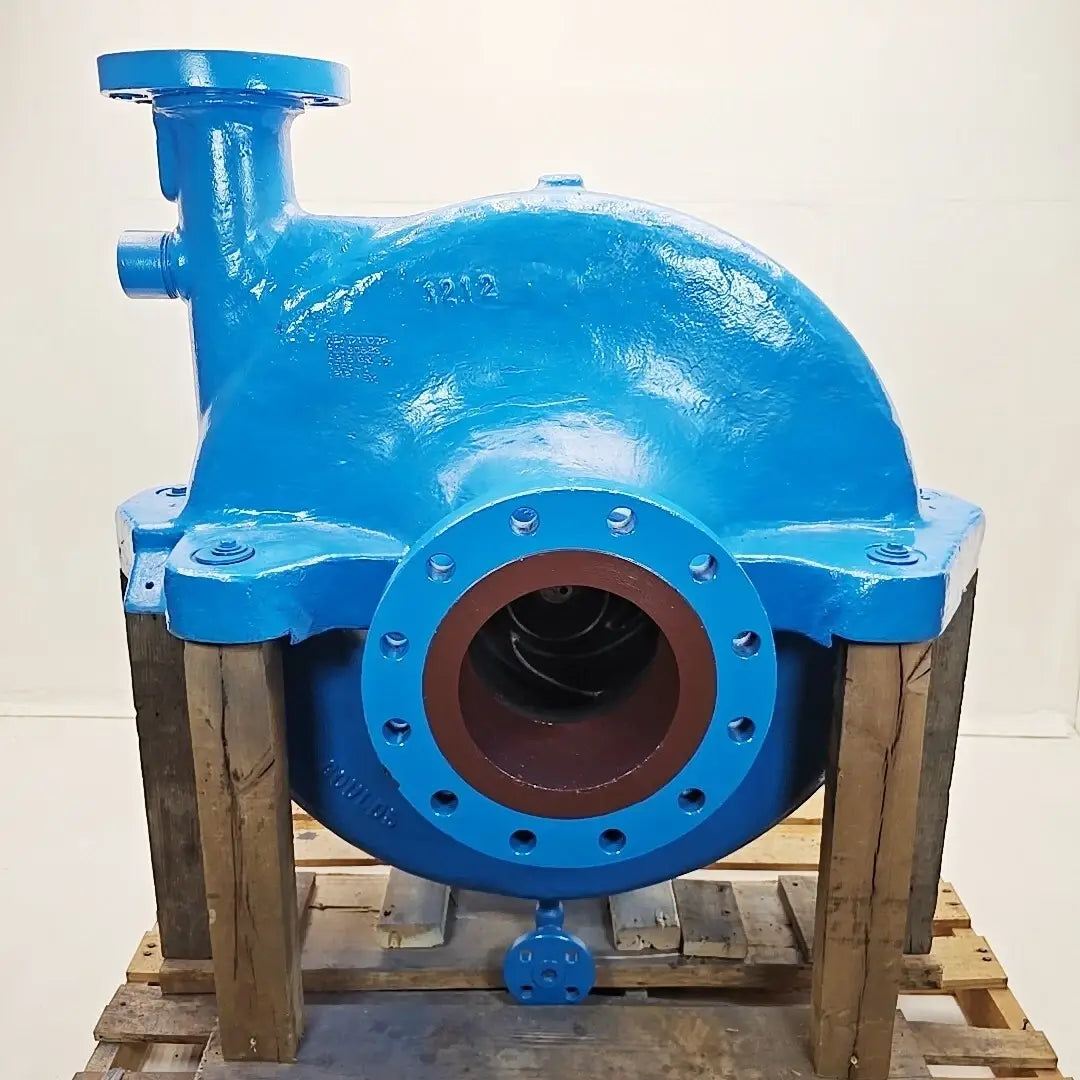

Goulds 3700 XXL 4×8-27C Process Pump — CD4MCuN | DWP
Goulds 3700 XXL 4×8-27C Process Pump — CD4MCuN | DWPIn stock · 3 · RD160
Ships from Minnesota · LTL or customer pickup · freight quoted to your dock
- Ships from Minnesota, LTL or pickup
- PO and tax-exempt orders accepted
- 30-day returns
- Same-day processing
- Questions on fit or specs: (612) 449-0646
Specification

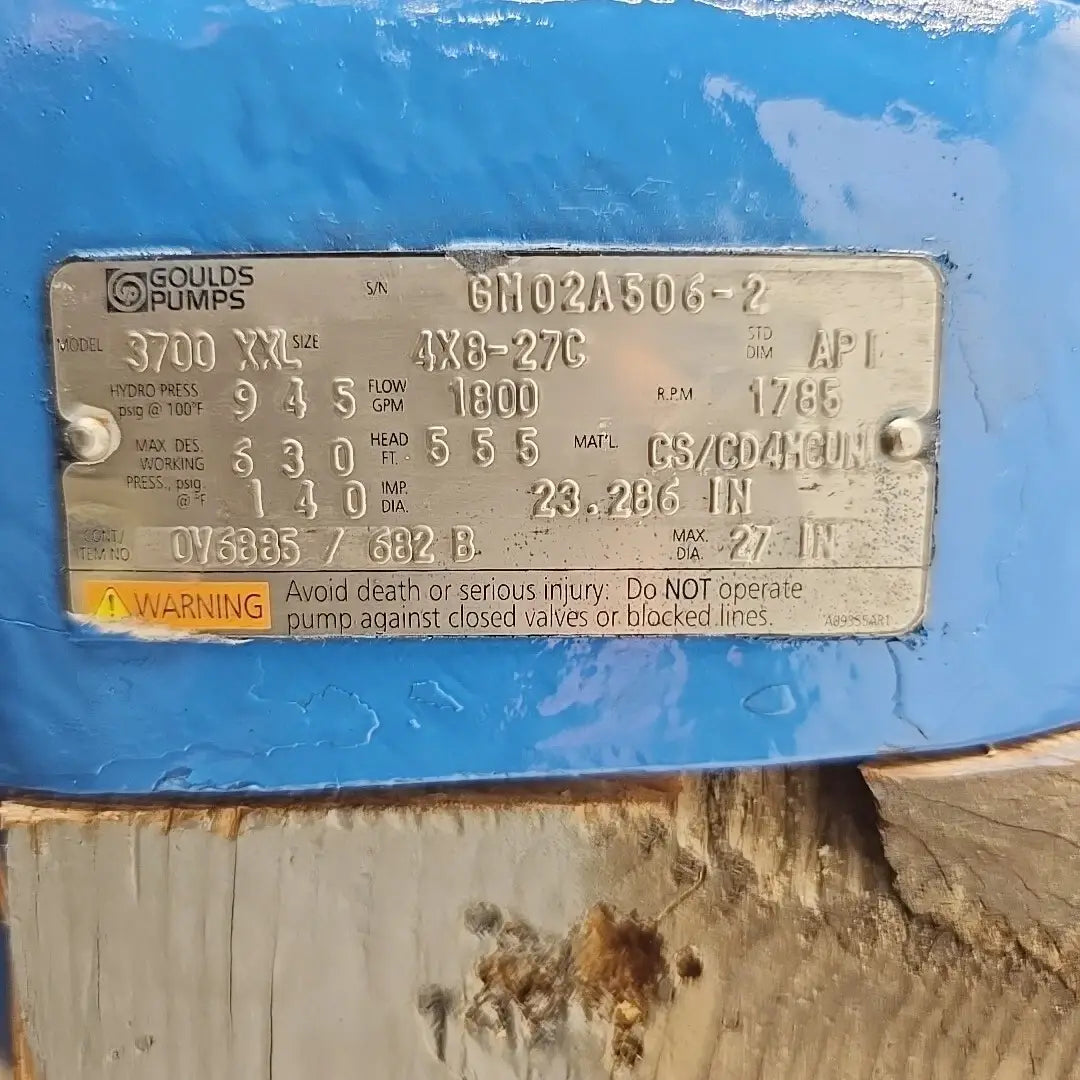

as recorded from the nameplate
- Condition
- Used What our grades mean
- Manufacturer
- Goulds / ITT
- Model
- 3700 XXL
- Serial no.
- GN02A506-2
- Size
- 4×8-27C
- Specifications
- Type: Single-stage overhung process pump (API 610 OH2)Materials: CS / CD4MCuN (duplex SS impeller)Flow (nameplate): 1800 GPMHead (nameplate): 555 ftRPM (nameplate): 1785Impeller Diameter (nameplate): 23.286″Orientation / Mount: Horizontal, end-suction overhungStandards: API 610 OH2 (per OEM literature)
- Included
- Pump assembly as shown; coupling/base/driver not included unless pictured
- SKU
- RD160
- Listed
Request a quote
Request a quote for this unit
Tell us the quantity and when you need it. You get a written quote with price, availability and freight to your dock, ready for your PO, within 24–48 hours.
SKU RD160
Prefer to talk? Call (612) 449-0646
Details
Product Description
Product Description
The Goulds 3700 XXL is a single-stage, overhung API 610 (OH2) process pump for demanding industrial service. This unit is the 4×8-27C size with CS/CD4MCuN metallurgy (carbon-steel casing with duplex stainless impeller). Nameplate values indicate 1800 GPM at 555 ft of head at 1785 RPM, with an impeller diameter of 23.286.″
Key Specifications
- Manufacturer: Goulds / ITT
- Model: 3700 XXL | Size: 4×8-27C
- Type: Single-stage, overhung process pump (API 610 OH2)
- Materials: CS / CD4MCuN (duplex stainless impeller)
- Flow (NP): 1800 GPM | Head (NP): 555 ft
- Speed (NP): 1785 RPM | Impeller Ø (NP): 23.286″
- Mounting: Horizontal, end-suction overhung
- Serial No.: GN02A506-2
Features & Benefits
- API 610 OH2 layout – overhung, centerline-mounted design for thermal stability.
- Duplex stainless impeller (CD4MCuN) – strength and corrosion resistance for tough services.
- Heavy-duty construction – cast steel casing with robust bearing housing for long life.
- Process-ready hydraulics – sized for high head at substantial flows.
Applications
- Chemical and petrochemical process service
- Refining and midstream
- Power and utility water services
- General industrial liquid transfer
Documentation
Condition & Availability
Used, removed from service. Cosmetic wear consistent with prior industrial use. Offered as shown on pallet; coupling/base/driver not included unless pictured. LTL freight available; export crating on request.
