Specification

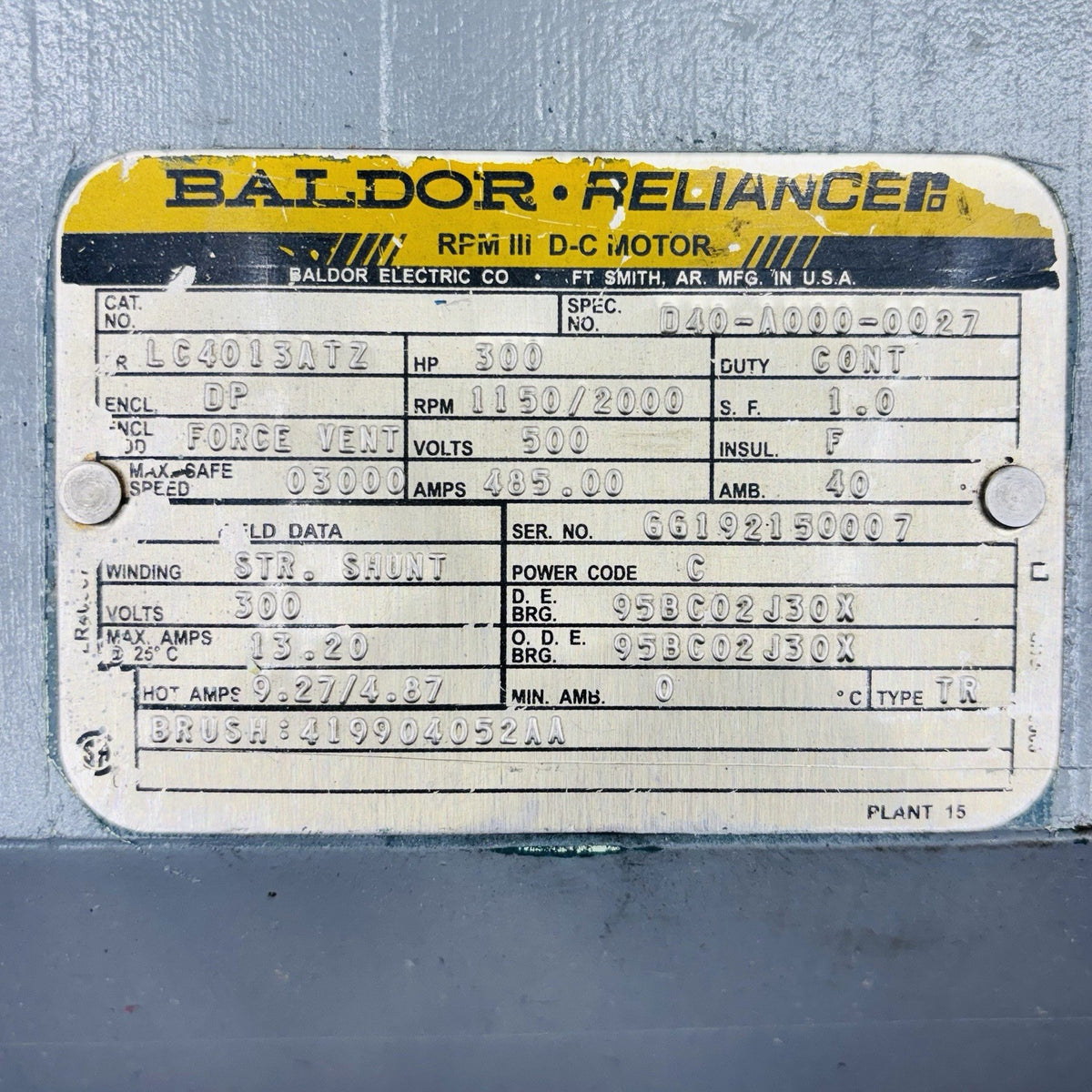

as recorded from the nameplate

Condition: Rebuilt What our grades mean
Brand: Baldor Reliance
MPN / model: LC4013ATZ (frame)
Spec no.: D40-A000-0027
Type: RPM III DC Motor, type TR
Serial no.: 66192150007
Horsepower: 300 HP
Speed (RPM): 1150/2000 RPM, max safe speed 3000 RPM
Armature: 500 V DC, 485 A
Field: Straight shunt, 300 V, 13.20 A max at 25 C, hot amps 9.27/4.87
Enclosure: DP, force ventilated (blower not included)
Duty / S.F. / insulation: Continuous / 1.0 / Class F, 40 C ambient
Bearings: 95BC02J30X drive end and opposite drive end
Brush: 419904052AA
Encoder: Nidec Avtron HS35X incremental, 1200 PPR, 6-30 VDC
Mounting: Foot-Mounted
Country of origin: United States
SKU: PK-397837408658
Listed: Oct 6, 2026

Request a quote

Request a quote for this unit

Tell us the quantity and when you need it. You get a written quote with price, availability and freight to your dock, ready for your PO, within 24–48 hours.

SKU PK-397837408658

Prefer to talk? Call (612) 449-0646

More Baldor in stock (10)

Details

Product Description

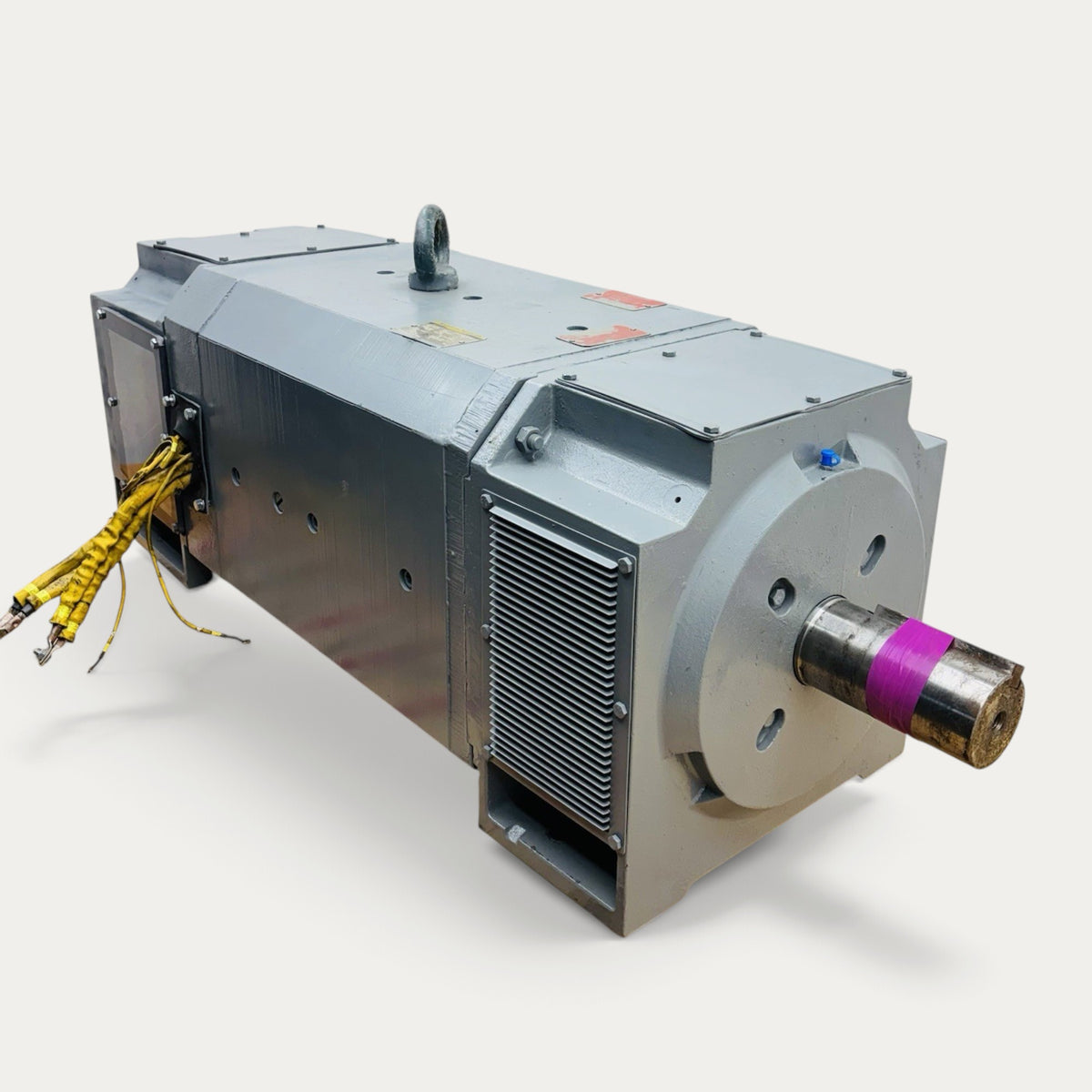

Baldor Reliance LC4013ATZ RPM III DC motor rated 300 HP at 500 V armature, 485 A, with 1150/2000 RPM dual-range operation (3000 RPM max safe speed), straight shunt field at 300 V, Class F insulation, continuous duty. Drip-proof force-ventilated enclosure for variable speed drive service; a new Nidec Avtron HS35X incremental encoder (1200 PPR) is fitted on the opposite drive end for speed feedback. Rebuilt, repainted, with the original nameplate intact. The force-vent blower is not included. In stock with no OEM lead time.

Specifications

Specification	Detail
Brand	Baldor Reliance
MPN / Model	LC4013ATZ (frame)
Spec No.	D40-A000-0027
Type	RPM III DC Motor, type TR
Serial No.	66192150007
Horsepower	300 HP
Speed (RPM)	1150/2000 RPM, max safe speed 3000 RPM
Armature	500 V DC, 485 A
Field	Straight shunt, 300 V, 13.20 A max at 25 C, hot amps 9.27/4.87
Enclosure	DP, force ventilated (blower not included)
Duty / S.F. / Insulation	Continuous / 1.0 / Class F, 40 C ambient
Bearings	95BC02J30X drive end and opposite drive end
Brush	419904052AA
Encoder	Nidec Avtron HS35X incremental, 1200 PPR, 6-30 VDC
Mounting	Foot-Mounted
Condition	Rebuilt - repainted, new Nidec Avtron HS35X encoder fitted, original nameplate intact
Country of Origin	United States

Specifications published from listing and manufacturer reference data. Contact us to confirm fitment for your application.

What’s Included

Motor with Nidec Avtron HS35X encoder mounted on the opposite drive end (tether bracket fitted) plus the encoder accessory kit in a sealed bag: mating connector, hardware and installation sheet. Shaft key fitted. Ships on a wood skid. Not included: force-vent blower, coupling, base rails, or drive. Freight quoted by destination.
